JVT1150WN2-2x05SNR-D  JVT ATX Connector

Symbol Micros: Z KWM4505-10r-C

107022

Z KWM4505-10r-C

Contractor Symbol:

Case : Rys.KWM4505-10R-C

Datasheet

Technical drawing Add to favourites

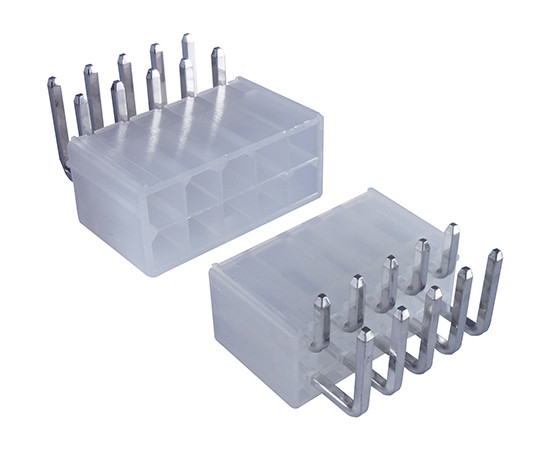

Socket; male; 10pin (2x5); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1150WN2-2x05SNR-D RoHS Case style: Rys.KWM4505-10R-C Datasheet

In stock:

66 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,4348	0,2623	0,2004	0,1804	0,1741

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2024-12-25

Quantity of pcs.: 1000

• Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
