JVT1150WN2-2x06SNR-D JVT ATX Connector

Symbol Micros: Z KWM4505-12r-C

107023

Z KWM4505-12r-C

Contractor Symbol:

Case : Rys.KWM4505-12R-C

Datasheet

Technical drawing Add to favourites

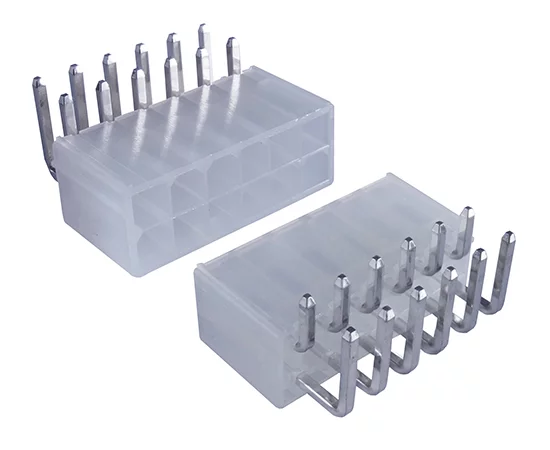

Socket; male; 12pin (2x6); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x6
Number of pins:	12
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1150WN2-2x06SNR-D RoHS Case style: Rys.KWM4505-12R-C Datasheet

In stock:

2483 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,4839	0,2913	0,2227	0,2004	0,1936

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x6
Number of pins:	12
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
