W4505-14PDRBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-14r

21261

Z KWM4505-14r

Contractor Symbol:

Case : Rys.W4505-14R

Datasheet

Technical drawing Add to favourites

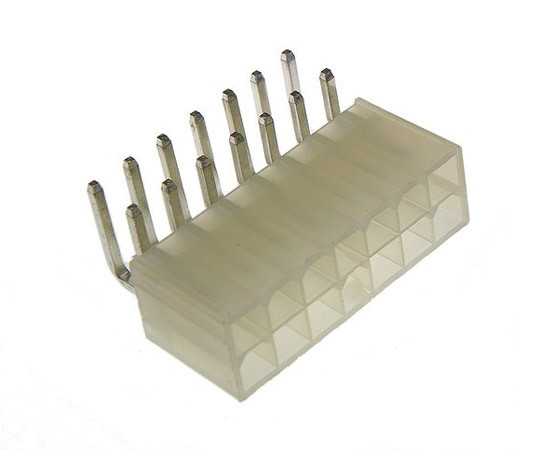

Socket; male; 14pin (2x7); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX569-14

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x7
Number of pins:	14
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: W4505-14PDRBTWR RoHS Case style: Rys.W4505-14R Datasheet

In stock:

1309 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,6319	0,4017	0,3171	0,2842	0,2748

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/1500 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x7
Number of pins:	14
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
