W4505-14PDSBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-14s

21257

Z KWM4505-14s

Contractor Symbol:

Case : Rys.W4505-14S

Datasheet

Technical drawing Add to favourites

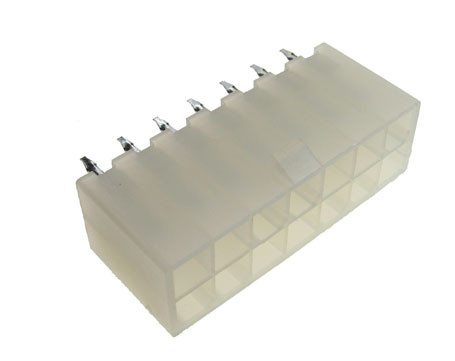

Socket; male; 14pin (2x7); straight; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX566-14

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x7
Number of pins:	14
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: W4505-14PDSBTWR RoHS Case style: Rys.W4505-14S

In stock:

500 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,5684	0,3594	0,2842	0,2560	0,2466

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x7
Number of pins:	14
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	THT
Type of connector:	Male
