JVT1150WN2-2X08SN-D JVT ATX Connector

Symbol Micros: Z KWM4505-16s-C

107019

Z KWM4505-16s-C

Contractor Symbol:

Case : Rys.KWM4505-16S-C

Datasheet

Technical drawing Add to favourites

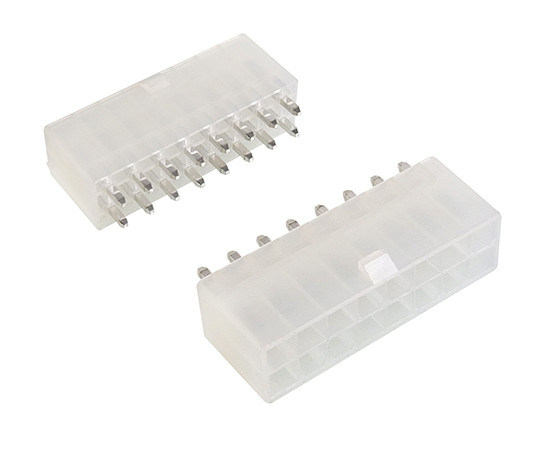

Socket; male; 16pin (2x8); straight; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Straight
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1150WN2-2X08SN-D RoHS Case style: Rys.W4505-16S Datasheet

In stock:

215 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,4344	0,2419	0,1902	0,1728	0,1672

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +

Manufacturer:: JVT Manufacturer part number: JVT1150WN2-2X08SN-D RoHS Case style: Rys.W4505-16S Datasheet

In stock:

600 pcs.

Quantity of pcs.	2+	10+	50+	200+	600+
Net price (EUR)	0,4438	0,2677	0,2045	0,1841	0,1770

Add to comparison tool Add inquiry (RFQ)

Packaging:
600 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Straight
Mounting:	THT
Type of connector:	Male
