W4505-24PDRBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-24r

21263

Z KWM4505-24r

Contractor Symbol:

Case : Rys.W4505-24R

Datasheet

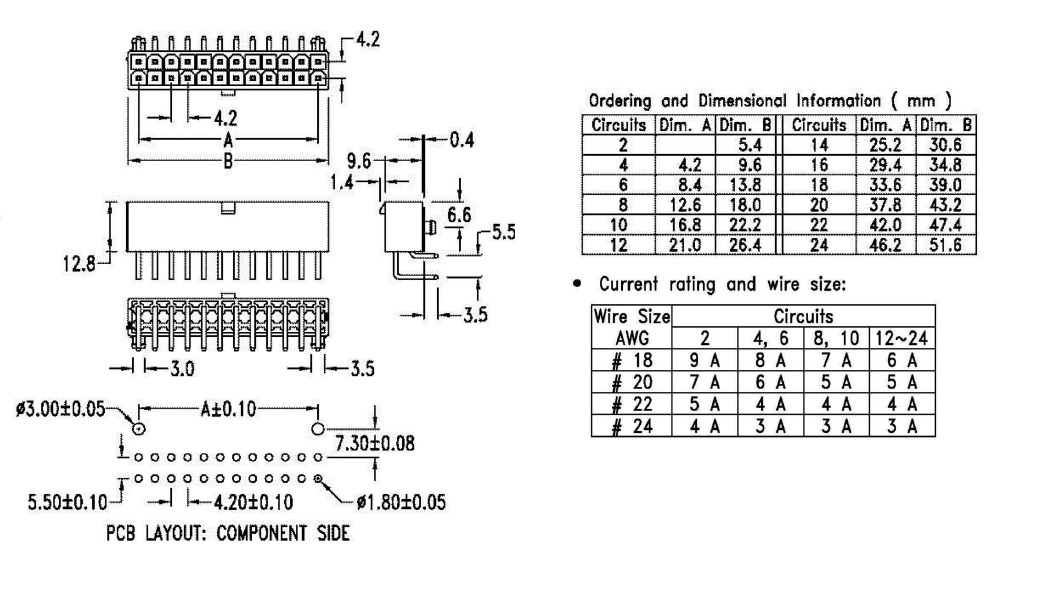

Technical drawing Add to favourites

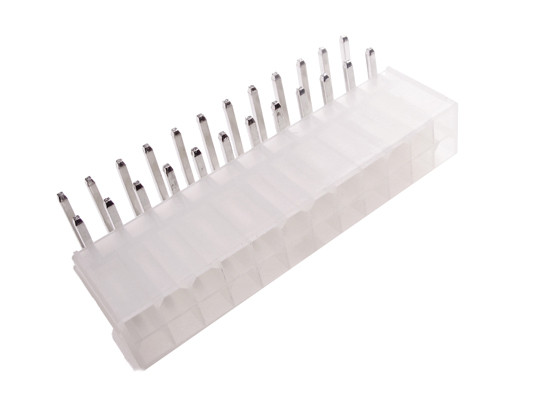

Socket; male; 24pin (2x12); angled; pitch: 4,2mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX569-24

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x12
Number of pins:	24
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	2x12
Number of pins:	24
Connector:	Socket
Manufacturer:	HSM
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
