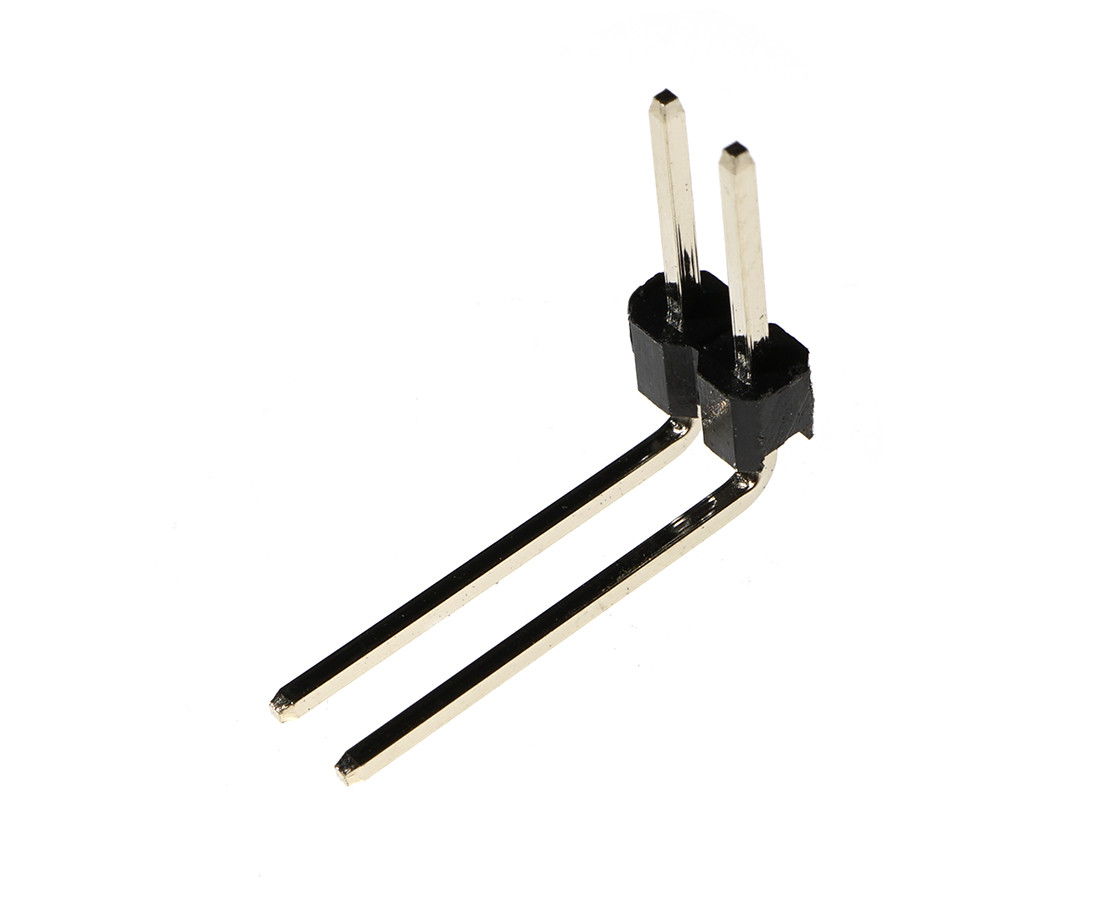

DS1022-1*2RDF1-A6.75/B12/C11.3-B  CONNFLY Pin header

Symbol Micros: Z L1x02R11.3

108112

Z L1x02R11.3

Contractor Symbol:

Case : Rys.L1x02R11.3

Datasheet

Technical drawing Add to favourites

male; single row; 1x40pin, straight, p.2,54mm, PCB, gold contact

Parameters

Number of pins:	1x02
Connector:	Pin strip
Mounting:	For printing
Type:	Plug
Spatial orientation:	Angled
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1022-1*2RDF1-A6.75/B12/C11.3-B RoHS Case style: Rys.L1x02R11.3

In stock:

748 pcs.

Quantity of pcs.	10+	50+	100+	500+	4000+
Net price (EUR)	0,0791	0,0314	0,0232	0,0149	0,0122

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/4000 Quantity (multiple: 10)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1022-1*2RDF1-A6.75/B12/C11.3-B RoHS Case style: Rys.L1x02R11.3 Datasheet

In stock:

0 pcs.

Quantity of pcs.	10+	50+	200+	500+	2500+
Net price (EUR)	0,0791	0,0312	0,0181	0,0146	0,0122

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/12000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	1x02
Connector:	Pin strip
Mounting:	For printing
Type:	Plug
Spatial orientation:	Angled
Terminal pitch:	2,54mm
