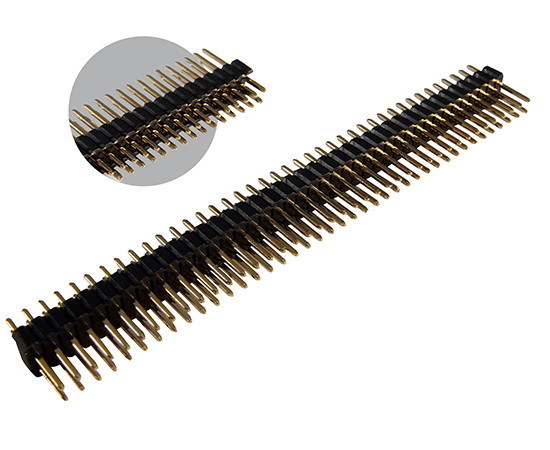

DS1031-06-2*40P8BV41-3A CONNFLY Pin header dual row

Symbol Micros: Z L2X40S 1.27-H4T1

110849

Z L2X40S 1.27-H4T1

Contractor Symbol:

Case : Rys.L2X40S 1.27-H4T1

Datasheet

Technical drawing Add to favourites

2x40pin, straight, PCB, gold contact, p.1.27mm h=7.8mm; housing height 2.0mm

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	2x40
Connector:	Pin strip
Mounting:	For printing
Type of connector:	Male
Spatial orientation:	Straight
Terminal pitch:	1,27mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2x40
Connector:	Pin strip
Mounting:	For printing
Type of connector:	Male
Spatial orientation:	Straight
Terminal pitch:	1,27mm
