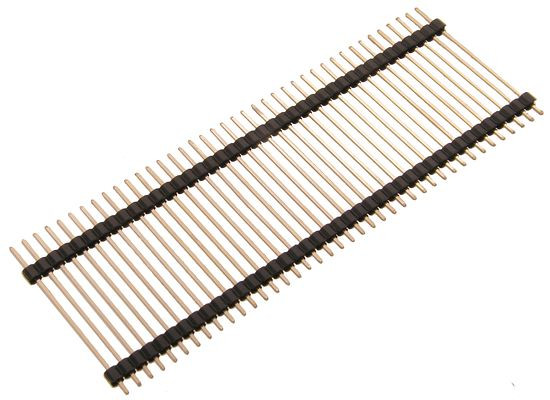

CH-254-PH-1-40-S-30/280/60-GO-A CONNECTAR Double deck pin header

Symbol Micros: Z LDS1x40-37.8

45424

Z LDS1x40-37.8

Contractor Symbol:

Case : Rys.LDS1x40-37.8

Datasheet

Add to favourites

male; straight; 1x40pin; pitch 2,54mm; dual insulator 37,8mm (28mm) eqiv. ZL2038-40

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Overall length:	37,8mm
Number of pins:	1x40
Manufacturer:	CONNECTAR
Mounting:	THT
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.LDS1x40-37.8 Datasheet

In stock:

2189 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	0,9325	0,6835	0,5497	0,4698	0,4440

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/1000/2000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-05-20

Quantity of pcs.: 10000

• Parameters

Overall length:	37,8mm
Number of pins:	1x40
Manufacturer:	CONNECTAR
Mounting:	THT
Terminal pitch:	2,54mm
