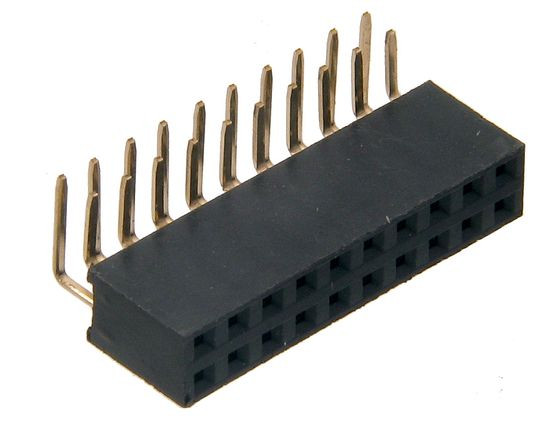

DS1024-2*10R2 CONNFLY Socket pin strips

Symbol Micros: Z LG2x10R

16639

Z LG2x10R

Contractor Symbol:

Case : Rys.LG2x10R

Datasheet

Technical drawing Add to favourites

female; dual row 2x10pin, angled, p.2.54mm, PCB, gold contact; eqiv. PBD-20R, ZL263-20DG

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	2x10
Connector:	Socket pin strips
Mounting:	For printing
Type:	Socket
Spatial orientation:	Angled
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-2X10R2 Case style: Rys.LG2x10R

External warehouse:

2227 pcs.

Quantity of pcs.	1+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,1602

Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	2x10
Connector:	Socket pin strips
Mounting:	For printing
Type:	Socket
Spatial orientation:	Angled
Terminal pitch:	2,54mm
