PBMTD20S-CT CONNTHERM

Symbol Micros: Z LG2x10T 2.0

119670

Z LG2x10T 2.0

Contractor Symbol:

Case : Rys.LG2x10T 2.0

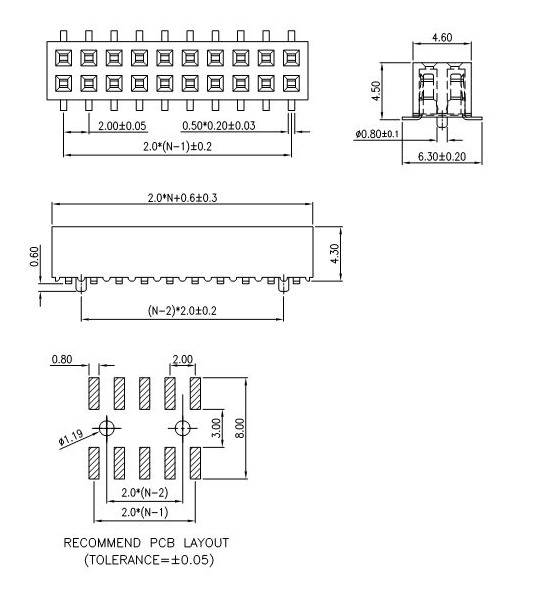

Technical drawing Add to favourites

female; dual row 2x10pin; staright; p.2,00mm, SMD, gold contact; equivalent: ZL266-20DG/PAD

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	2x10
Connector:	Socket pin strips
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch:	2,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2x10
Connector:	Socket pin strips
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch:	2,0mm
