DS1026-05-2*22S8BV CONNFLY Socket pin strips

Symbol Micros: Z LG2x22S 2.0

134119

Z LG2x22S 2.0

Contractor Symbol:

Case : Rys.LG2x22S 2.0

Datasheet

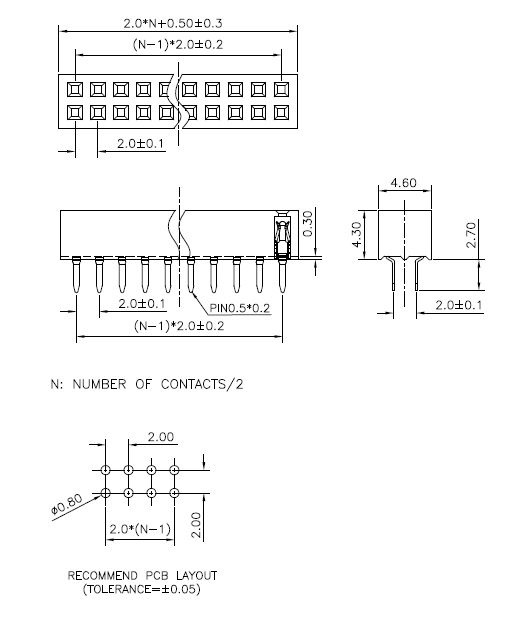

Technical drawing Add to favourites

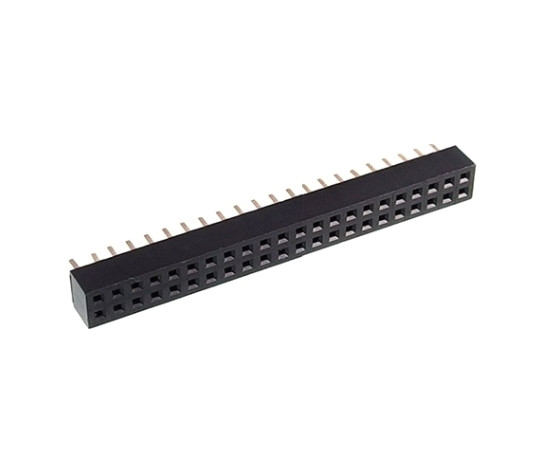

female; dual row 2x22pin; staright; p.2,00mm, PCB, gold contact; equivalent: ZL265-44DG

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	2x22
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch:	2,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2x22
Connector:	Socket pin strips
Mounting:	For printing
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch:	2,0mm
