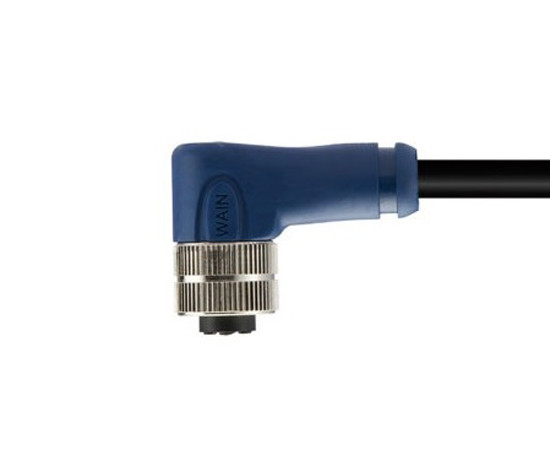

M12-F05A-S-1.5-PVC WAIN M12 type connector

Symbol Micros: Z M12-F05A-S-1.5-PVC

311159

Z M12-F05A-S-1.5-PVC

Contractor Symbol:

Case : Rys.M12-F05A-S-1.5-PVC

Datasheet

Add to favourites

female, angled, number of contacts: 5; 4A, 125V, IP67, wire gauge: 0.25mm2 (AWG24) crimp, moulded, cable length: 1.5m, A coding system

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	Clamping
Number of pins:	5
Operating voltage:	125V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Female
Wire insulation material:	PVC
Cable length:	1,5m

All parameters

Manufacturer:: WAIN Manufacturer part number: M12-F05A-S-1.5-PVC RoHS Case style: Rys.M12-F05A-S-1.5-PVC Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	7,1292	6,6668	6,3770	6,2734	6,1998

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Mounting:	Clamping
Number of pins:	5
Operating voltage:	125V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Female
Wire insulation material:	PVC
Cable length:	1,5m
Current:	4A
Spatial orientation:	Angled
Connector type:	M12
IP rating:	IP67
