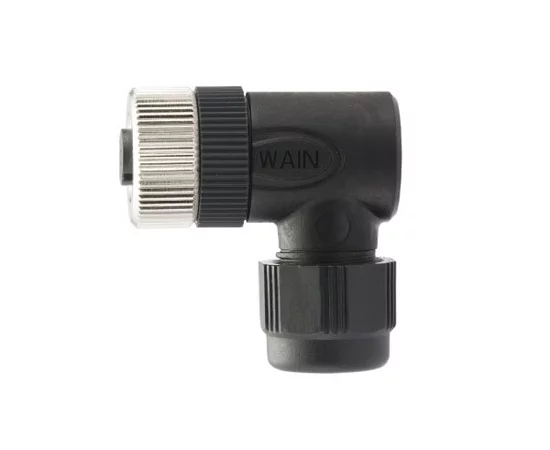

M12-M05A-S-D6 WAIN M12 type connector

Symbol Micros: Z M12-F05A-S-D6

311148

Z M12-F05A-S-D6

Contractor Symbol:

Case : Rys.M12-F05A-S-D6

Datasheet

Add to favourites

female, angled, number of contacts: 5; 4A, 250V, IP67, wire gauge: 0.75mm2 (AWG18) Cable outlet: 4-6mm, montage: screw, A coding system

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	Screw clamp
Number of pins:	5
Operating voltage:	125V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Female
Wire insulation material:	PA
Current:	4A

All parameters

Manufacturer:: WAIN Manufacturer part number: M12-F05A-S-D6 RoHS Case style: Rys.M12-F05A-S-D6 Datasheet

In stock:

18 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	7,9854	7,4671	7,1422	7,0270	6,9441

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Mounting:	Screw clamp
Number of pins:	5
Operating voltage:	125V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Female
Wire insulation material:	PA
Current:	4A
Spatial orientation:	Angled
Connector type:	M12
IP rating:	IP67
