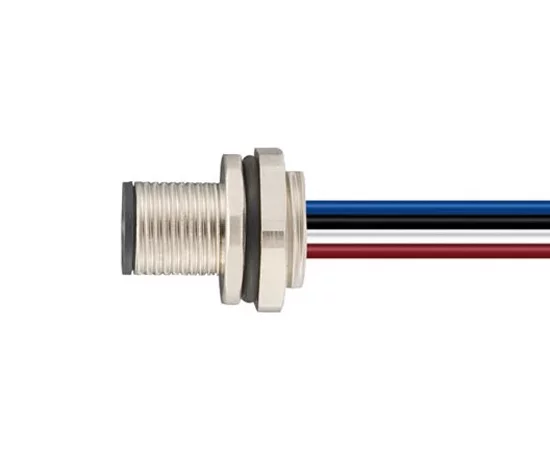

M12-M04A-BK-M16-W0.25 WAIN M12 type connector

Symbol Micros: Z M12-M04A-BK-M16

311163

Z M12-M04A-BK-M16

Contractor Symbol:

Case : Rys.M12-M04A-BK-M16

Datasheet

Add to favourites

male, angled, number of contacts: 4; 4A, 250V, IP67, wire gauge: 0.34mm2 (AWG22) for panel, cable length: 0.2m, A coding system

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	On panel
Number of pins:	4
Operating voltage:	250V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Male
Cable length:	0,2m
Current:	4A

All parameters

Manufacturer:: WAIN Manufacturer part number: M12-M04A-BK-M16-W0.25 RoHS Case style: Rys.M12-M04A-BK-M16 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	6,1637	5,5295	5,2758	5,2030	5,1372

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Mounting:	On panel
Number of pins:	4
Operating voltage:	250V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Male
Cable length:	0,2m
Current:	4A
Spatial orientation:	Straight
Connector type:	M12
IP rating:	IP67
