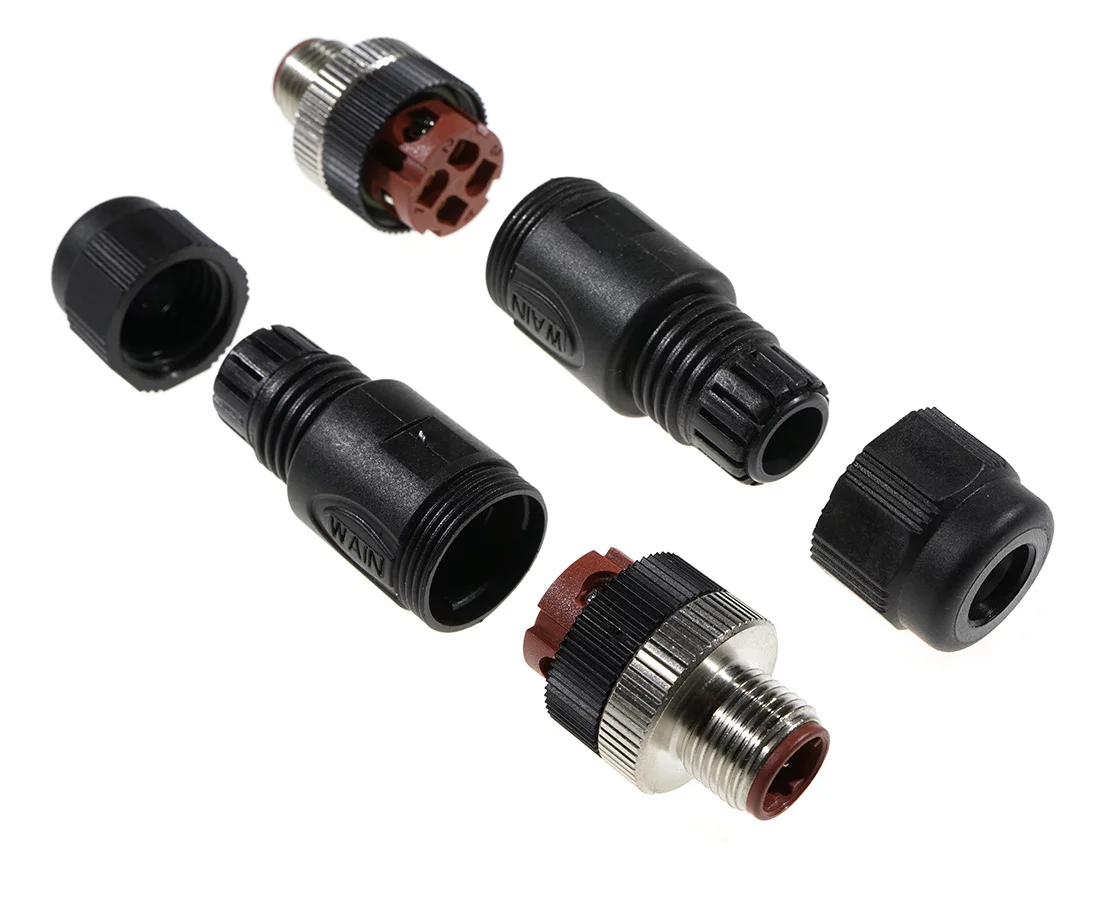

M12-M04D-T-D8 WAIN M12 type connector

Symbol Micros: Z M12-M04D-T-D8

350382

Z M12-M04D-T-D8

Contractor Symbol:

Case : Rys.M12-M04D-T-D8

Datasheet

Add to favourites

male, number of contacts: 4; 2A, 60V, IP67, wire gauge: 0.5mm2 (AWG20) Cable outlet: 6-8mm, montage: screw, A coding system

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	Screw clamp
Number of pins:	8
Operating voltage:	60V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Male
Wire insulation material:	PA
Current:	2A

All parameters

Manufacturer:: WAIN Manufacturer part number: M12-M04D-T-D8 RoHS Case style: Rys.M12-M04D-T-D8 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	5+	10+	20+
Net price (EUR)	10,0489	9,6519	9,2925	9,1069	8,9730

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Mounting:	Screw clamp
Number of pins:	8
Operating voltage:	60V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Male
Wire insulation material:	PA
Current:	2A
Spatial orientation:	Straight
Connector type:	M12
IP rating:	IP67
