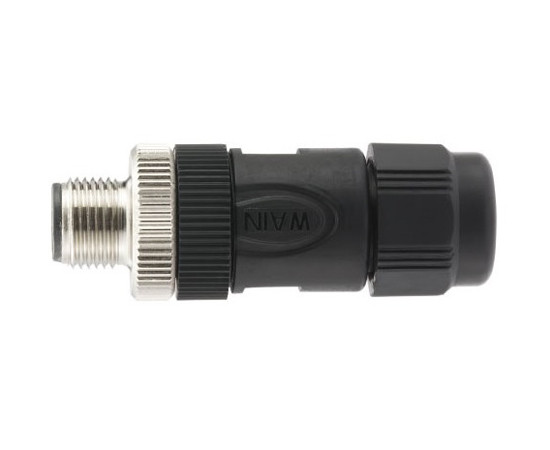

M12-M05A-T-D6 WAIN M12 type connector

Symbol Micros: Z M12-M05A-T-D6

311134

Z M12-M05A-T-D6

Contractor Symbol:

Case : Rys.M12-M05A-T-D6

Datasheet

Add to favourites

male, number of contacts: 5; 4A, 250V, IP67, wire gauge: 0.75mm2 (AWG18) Cable outlet: 4-6mm, montage: screw, A coding system

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	Screw clamp
Number of pins:	5
Operating voltage:	125V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Male
Wire insulation material:	PA
Current:	4A

All parameters

Manufacturer:: WAIN Manufacturer part number: M12-M05A-T-D6 RoHS Case style: Rys.M12-M05A-T-D6 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	100+
Net price (EUR)	5,8547	5,3946	5,1117	4,9230	4,8793

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Mounting:	Screw clamp
Number of pins:	5
Operating voltage:	125V
Polarisation:	Code A - DeviceNet/CAN bus
Type of connector:	Male
Wire insulation material:	PA
Current:	4A
Spatial orientation:	Straight
Connector type:	M12
IP rating:	IP67
