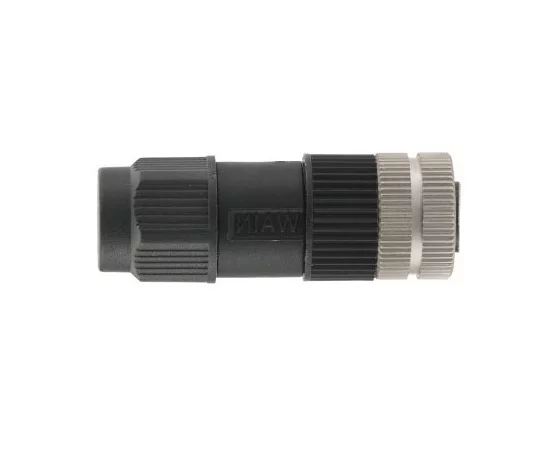

M8 type connector, WAIN M8-F03-T-D5, female, number of contacts: 3

Symbol Micros: Z M8-F03-T-D5

311117

Z M8-F03-T-D5

Contractor Symbol:

Case : Rys.M8-F03-T-D5

Datasheet

Add to favourites

4A, 60V, IP67, wire gauge: 0.14-0.5mm2 (AWG26-20) Cable outlet: 3.5-5mm, montage: screw

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	Screw clamp
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Female

All parameters

Manufacturer:: WAIN Manufacturer part number: M8-F03-T-D5 RoHS Case style: Rys.M8-F03-T-D5 Datasheet

In stock:

19 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	8,7327	8,1667	7,8102	7,6836	7,5939

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Mounting:	Screw clamp
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Female
IP rating:	IP67
