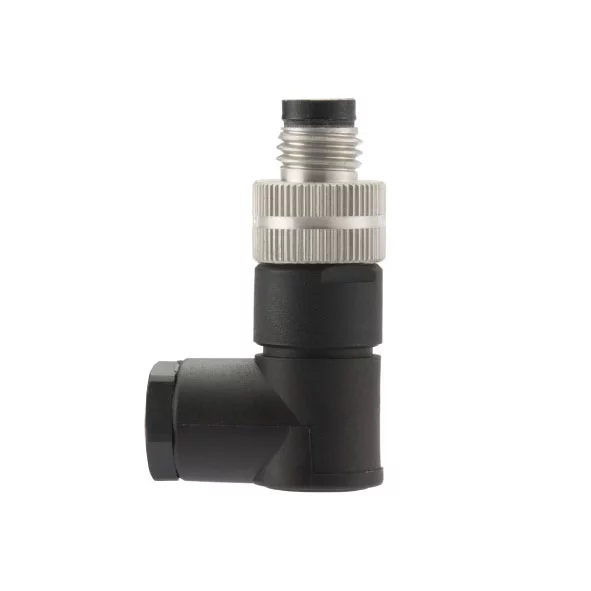

M8 type connector, WAIN M8-MST03-S-D5, male, angled, number of contacts: 3

Symbol Micros: Z M8-MST03-S-D5

311115

Z M8-MST03-S-D5

Contractor Symbol:

Case : Rys.M8-MST03-S-D5

Datasheet

Add to favourites

4A, 60V, IP67, wire gauge: 0.25mm2 (AWG24) Cable outlet: 3.5-5mm, montage: solder

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	For soldering
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Angled
Connector type:	M8
Current:	4A
Type of connector:	Male

All parameters

Manufacturer:: WAIN Manufacturer part number: M8-MST03-S-D5 RoHS Case style: Rys.M8-MST03-S-D5 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	7,0187	6,2952	6,0063	5,9241	5,8489

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Mounting:	For soldering
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Angled
Connector type:	M8
Current:	4A
Type of connector:	Male
IP rating:	IP67
