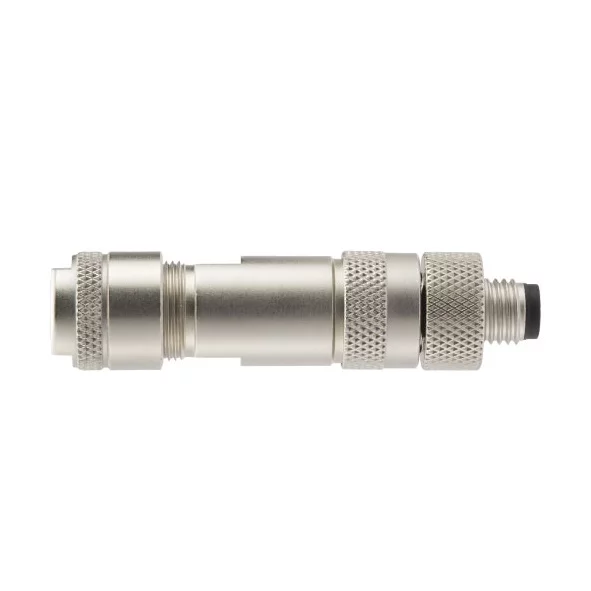

M8 type connector, WAIN M8-MST04-T-D5-SH, male, number of contacts: 4

Symbol Micros: Z M8-MST04-T-D5-SH

311114

Z M8-MST04-T-D5-SH

Contractor Symbol:

Case : Rys.M8-MST04-T-D5-SH

Datasheet

Add to favourites

4A, 30V, IP67, wire gauge: 0.25mm2 (AWG24) Cable outlet: 3.5-5mm, montage: solder, version with shielding

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	For soldering
Number of pins:	4
Operating voltage:	30V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Male

All parameters

Manufacturer:: WAIN Manufacturer part number: M8-MST04-T-D5-SH RoHS Case style: Rys.M8-MST04-T-D5-SH Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	13,5394	12,9428	12,5576	12,4143	12,3086

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Mounting:	For soldering
Number of pins:	4
Operating voltage:	30V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Male
IP rating:	IP67
