C3510-10RPGB00R HSM IDC connector

Symbol Micros: Z MD10R

11959

Z MD10R

Contractor Symbol:

Case : Rys.MD10R

Datasheet

Technical drawing Add to favourites

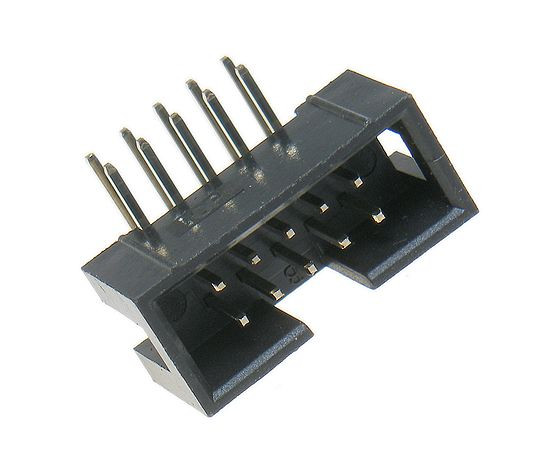

Male 10pin pitch 2.54mm IDC for PCB angled, black color built-up eqiv. BH10R, ZL231-10KG

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	10
Mounting:	For printing, angled
Terminal pitch:	2,54mm
Gold plating:	Gold plated contacts
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: C3510-10RPGB00R RoHS Case style: Rys.MD10R

In stock:

1300 pcs.

Quantity of pcs.	3+	10+	50+	260+	1820+
Net price (EUR)	0,3148	0,2015	0,1419	0,1217	0,1144

Add to comparison tool Add inquiry (RFQ)

Packaging:
260/1820 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	10
Mounting:	For printing, angled
Terminal pitch:	2,54mm
Gold plating:	Gold plated contacts
Type of connector:	Male
