C3510-14RPGB00R HSM IDC connector

Symbol Micros: Z MD14R

12592

Z MD14R

Contractor Symbol:

Case : Rys.MD14R

Datasheet

Technical drawing Technical drawing Add to favourites

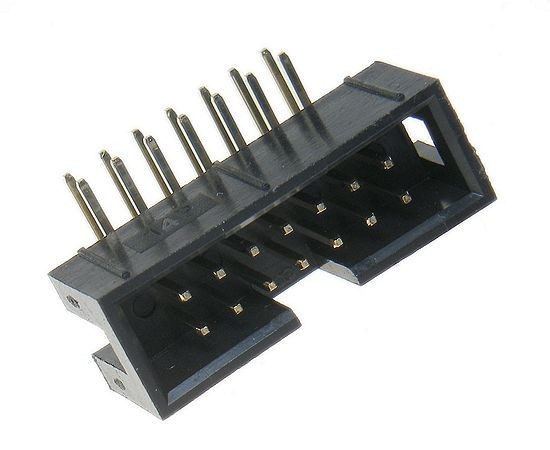

Male 14pin pitch 2.54mm IDC for PCB angled, black color built-up eqiv. BH14R, ZL231-14KG

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	14
Mounting:	For printing, angled
Terminal pitch:	2,54mm
Gold plating:	Gold plated contacts
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: C3510-14RPGB00R RoHS Case style: Rys.MD14R

In stock:

2000 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,3369	0,2204	0,1579	0,1380	0,1294

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/2400 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	14
Mounting:	For printing, angled
Terminal pitch:	2,54mm
Gold plating:	Gold plated contacts
Type of connector:	Male
