C3100-08ABSB00R HSM IDC connector

Symbol Micros: Z MP08

21061

Z MP08

Contractor Symbol:

Case : Rys.MP08

Datasheet

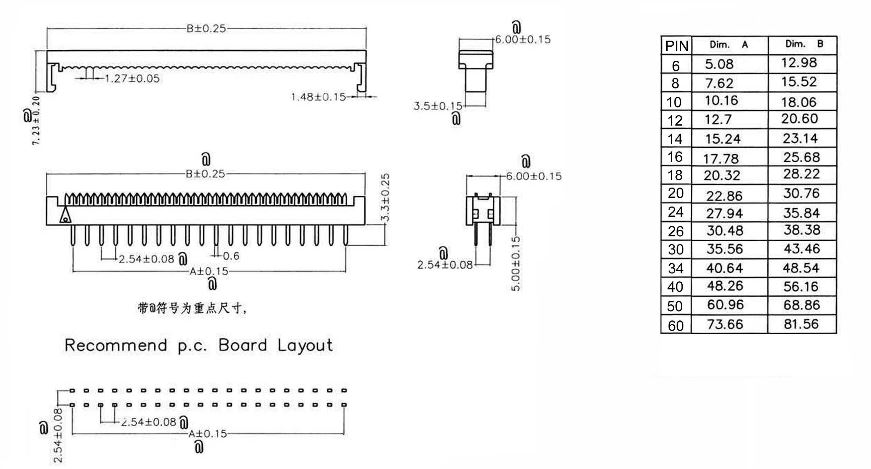

Technical drawing Add to favourites

male 8pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. MM-PCT08

Parameters

Number of pins:	8
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	8
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male
