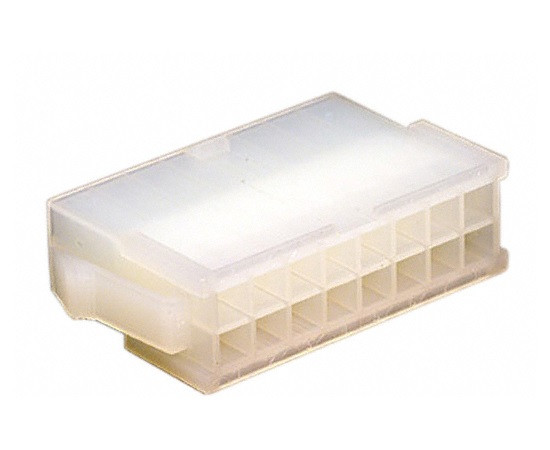

39-01-2161 MOLEX Mini-Fit Jr. Connector

Symbol Micros: Z MX-39-01-2161

405508

Z MX-39-01-2161

Contractor Symbol:

Case :

Datasheet

Technical drawing Add to favourites

Plug; male; 16pin (2x8); for cable; pitch: 4,2mm; w/o pins, 600V, UL94V-2; eqiv. MX-5559-16P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Plug
Manufacturer:	MOLEX
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Male

All parameters

Manufacturer:: MOLEX Manufacturer part number: 39012161 Case style: Rys.39-01-2161

External warehouse:

27200 pcs.

Quantity of pcs.	200+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,3093

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: MOLEX Manufacturer part number: 39012161 Case style: Rys.39-01-2161

External warehouse:

925 pcs.

Quantity of pcs.	25+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,3792

Add to comparison tool Add inquiry (RFQ)

Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Plug
Manufacturer:	MOLEX
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Male
