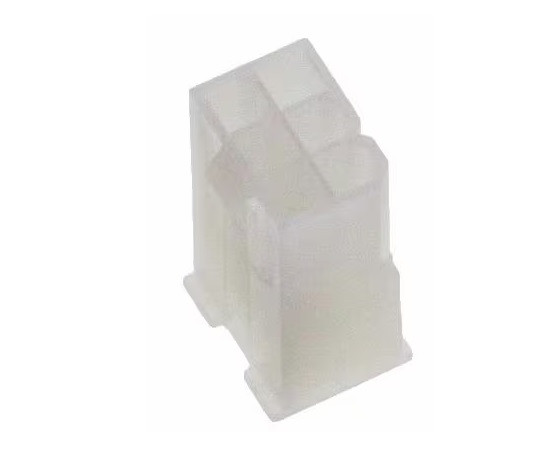

39-01-3063 MOLEX  Mini-Fit Jr. Connector

Symbol Micros: Z MX-39-01-3063

405555

Z MX-39-01-3063

Contractor Symbol:

Case : Rys.39-01-3063

Datasheet

Technical drawing Add to favourites

Plug; male; 6pin (2x3); for cable; pitch: 4,2mm; w/o pins, 600V, UL94V-2; eqiv. 5559-06P1

Parameters

Type of pin configuration:	2x3
Number of pins:	6
Connector:	Plug
Manufacturer:	MOLEX
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Male

All parameters

Manufacturer:: MOLEX Manufacturer part number: 39013063 Case style: Rys.39-01-3063

External warehouse:

16000 pcs.

Quantity of pcs.	2000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,3620

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: MOLEX Manufacturer part number: 39013063 Case style: Rys.39-01-3063

External warehouse:

1000 pcs.

Quantity of pcs.	25+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,3595

Add to comparison tool Add inquiry (RFQ)

Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Type of pin configuration:	2x3
Number of pins:	6
Connector:	Plug
Manufacturer:	MOLEX
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Male
