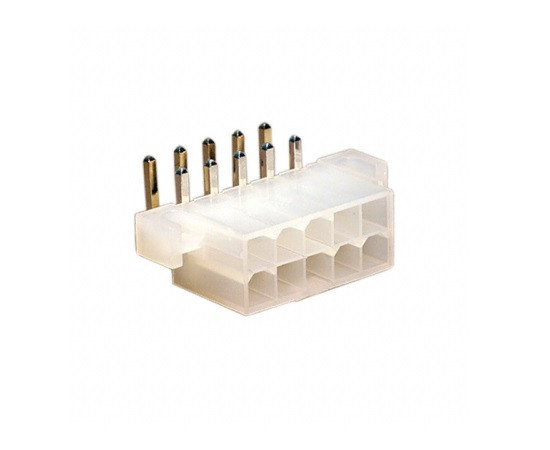

39-29-1108 MOLEX Mini-Fit Jr. Connector

Symbol Micros: Z MX-39-29-1108

111368

Z MX-39-29-1108

Contractor Symbol:

Case : Rys.39-29-1108

Datasheet

Technical drawing Add to favourites

Socket; male; 10pin (2x5); angled; THT; pitch 4,2mm; w/o pins; 9A; UL94V-2; eqiv. MX-5569-10A1

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket
Manufacturer:	MOLEX
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0039291108 Case style: Rys.39-29-1108

External warehouse:

1435 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,6822

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket
Manufacturer:	MOLEX
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
