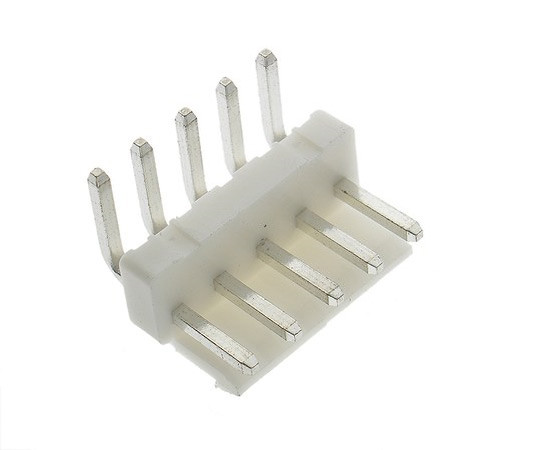

JVT1120WN2-05SNR-D JVT Cable connector

Symbol Micros: Z PWZ05r

19484

Z PWZ05r

Contractor Symbol:

Case : Rys.PWZ05r

Datasheet

Technical drawing Add to favourites

male; angled; with latch; PCB 5 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ05R

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	5
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ05r Datasheet

In stock:

19000 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2327	0,1283	0,0850	0,0707	0,0665

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/10000 Quantity (multiple: 1)

- +

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ05r Datasheet

In stock:

295 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2327	0,1283	0,0850	0,0707	0,0665

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/10000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	5
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
