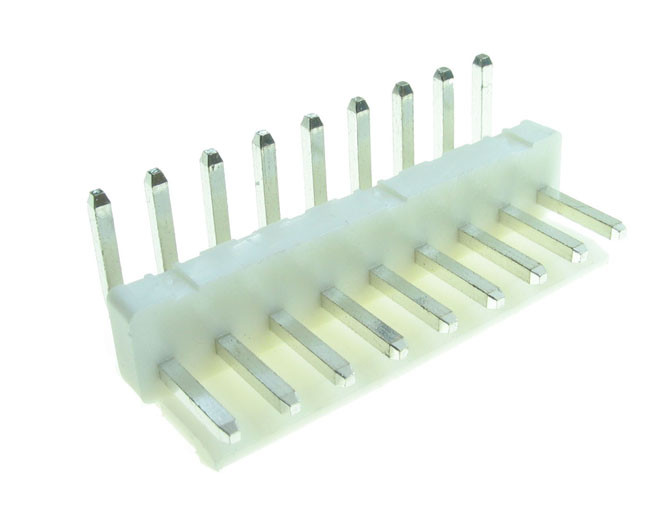

W3966-09PRTW00R HSM Cable connector

Symbol Micros: Z PWZ09r

19488

Z PWZ09r

Contractor Symbol:

Case : Rys.PWZ09r

Datasheet

Technical drawing Add to favourites

male; angled; with latch; PCB 9 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ09R

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	9
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.PWZ09r

In stock:

800 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2715	0,1501	0,0993	0,0826	0,0777

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	9
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
