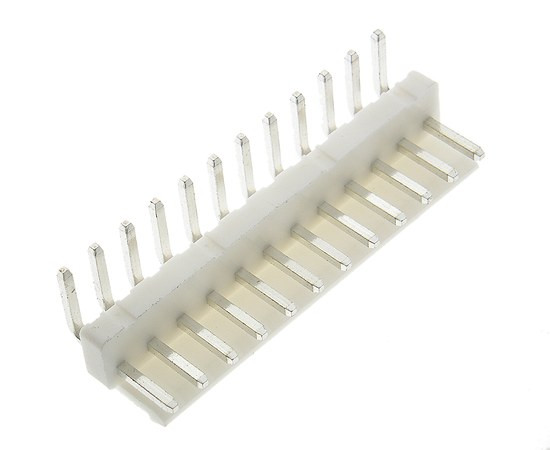

JVT1120WN2-12SNR-D JVT Cable connector

Symbol Micros: Z PWZ12r

19491

Z PWZ12r

Contractor Symbol:

Case : Rys.PWZ12r

Datasheet

Technical drawing Add to favourites

male; angled; with latch; PCB 12 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ12R

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	12
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.PWZ12r Datasheet

In stock:

500 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3845	0,2132	0,1683	0,1527	0,1478

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	12
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
