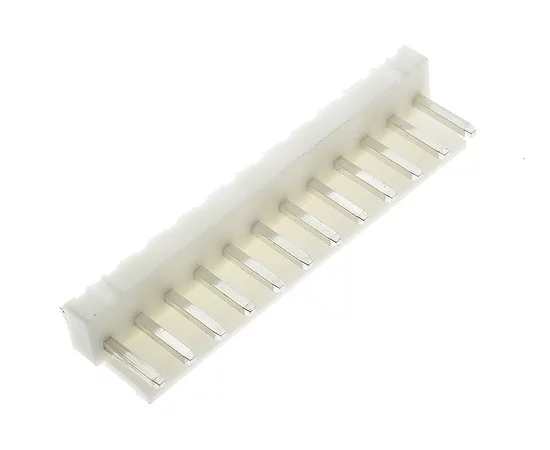

W3966-12PSTW00R HSM Cable connector

Symbol Micros: Z PWZ12s

19481

Z PWZ12s

Contractor Symbol:

Case : Rys.PWZ12s

Datasheet

Technical drawing

male; striaght; with latch; PCB 12 pin; pitch 3,96mm; tinned 7A, 250V, mate with PHZ housing, eqiv.: PWZ12S

Parameters

Number of pins:	12
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.PWZ12s

In stock:

250 pcs.

Quantity of pcs.	3+	10+	50+	250+	1000+
Net price (EUR)	0,2885	0,1845	0,1295	0,1109	0,1051

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	12
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
