SA2010/P5IB-1 WEIPU Industrial connector

Symbol Micros: Z SA2010/P5B-1

117424

Z SA2010/P5B-1

Contractor Symbol:

Case : Rys.Z SA2010/P5IB-1

Datasheet

Technical drawing Add to favourites

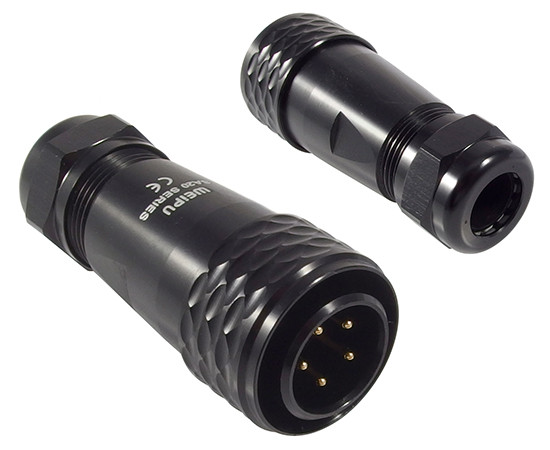

Male connector, circular, 5pin, cable diameter 8-12mm, black screwed, for cable, IP67, 500V, 10A, mate with SA2011/2012/2013

Parameters

Series:	SA20
Number of pins:	5
Current:	10A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Male

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2010/P5B RoHS Case style: Rys.Z SA2010/P5IB-1 Datasheet

In stock:

7 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	9,5387	8,9307	8,5517	8,4158	8,2942

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	SA20
Number of pins:	5
Current:	10A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Male
