SA2012/S5B-1 WEIPU Industrial connector

Symbol Micros: Z SA2012/S5B-1

117444

Z SA2012/S5B-1

Contractor Symbol:

Case : Rys.Z SA2012/S5B-1

Datasheet

Technical drawing Add to favourites

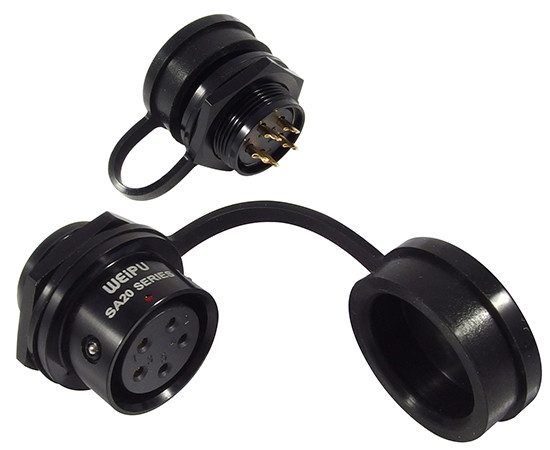

Female connector, circular, 5pin, black screwed, for panel mounting, IP67, 500V, 10A, mate with SA2010

Parameters

Series:	SA20
Number of pins:	5
Current:	10A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Female

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2012/S5B RoHS Case style: Rys.Z SA2012/S5B-1 Datasheet

In stock:

9 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	7,1870	6,6218	6,2730	6,0974	5,9892

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	SA20
Number of pins:	5
Current:	10A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Female
