SA2810/P3IB-1 WEIPU Industrial connector

Symbol Micros: Z SA2810/P3B-1

117454

Z SA2810/P3B-1

Contractor Symbol:

Case : Rys.Z SA2810/P3IB-1

Datasheet

Technical drawing Add to favourites

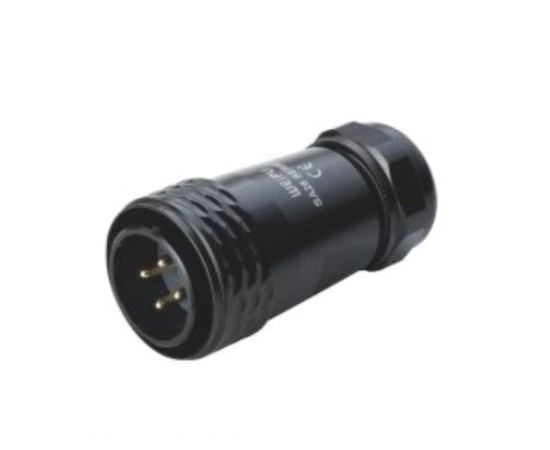

Male connector, circular, 3pin, cable diameter 13-16mm, black screwed, for cable, IP67, 500V, 50A, mate with SA2811/2812/2813

Parameters

Series:	SA28
Number of pins:	3
Current:	50A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Male

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SA2810/P3B-1 RoHS Case style: Rys.Z SA2810/P3IB-1 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	10+	20+	50+
Net price (EUR)	10,3743	9,6715	9,4993	9,3767	9,2635

Add to comparison tool Add inquiry (RFQ)

Packaging:
5/10 Quantity (multiple: 1)

- +

• Parameters

Series:	SA28
Number of pins:	3
Current:	50A
Operating voltage:	500V
Manufacturer:	WEIPU
IP rating:	IP67
Type of connector:	Male
