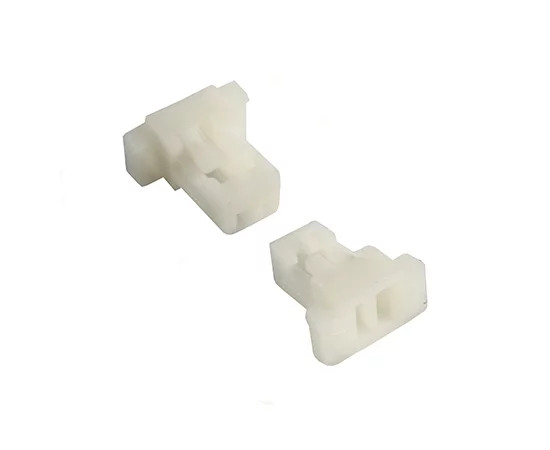

JVT1253-HNO-02 JVT Cable connector

Symbol Micros: Z SH-02V-S-B

115119

Z SH-02V-S-B

Contractor Symbol:

Case : Rys.SH-02V-S-B

Datasheet

Technical drawing Add to favourites

plug; female; 2 pin; 100V; 1A; pitch: 1,0mm; material: Nylon 66; UL 94V-0; operating temperature: -25°C~+85°C; eqiv. JST SHR-02V-S-B

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	2
Current:	1A
Connector:	Plug
Operating voltage:	100V
Manufacturer:	JVT
Type of connector:	Female

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1253HNO-02 RoHS Case style: Rys.SH-02V-S-B Datasheet

In stock:

3799 pcs.

Quantity of pcs.	20+	100+	300+	1000+	5000+
Net price (EUR)	0,0439	0,0162	0,0100	0,0073	0,0061

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/5000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	2
Current:	1A
Connector:	Plug
Operating voltage:	100V
Manufacturer:	JVT
Type of connector:	Female
