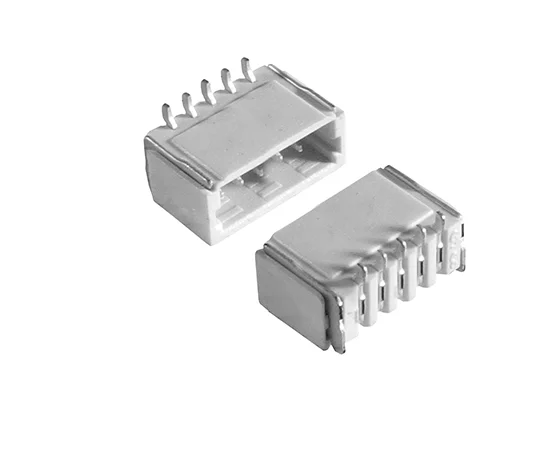

JVT1254WLP-05SNC-S JVT Cable connector

Symbol Micros: Z SH-BM05B-SRSS-TB

115722

Z SH-BM05B-SRSS-TB

Contractor Symbol:

Case : Rys.SH-BM05B-SRSS-TB

Datasheet

Technical drawing Add to favourites

socket; male, 5 pin; 0,5A; 50V; pitch: 1,0mm; vertical; materiał: LCP; UL94V-0; temp. pracy: -20°C~+85°C; eqiv. BM05B-SRSS-TB, match to: SHR-05V-S-B

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	5
Current:	0,5A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1254WLP-05SNC-S RoHS Case style: Rys.SH-BM05B-SRSS-TB Datasheet

In stock:

1220 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,4624	0,2784	0,2149	0,1939	0,1845

Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	5
Current:	0,5A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male
