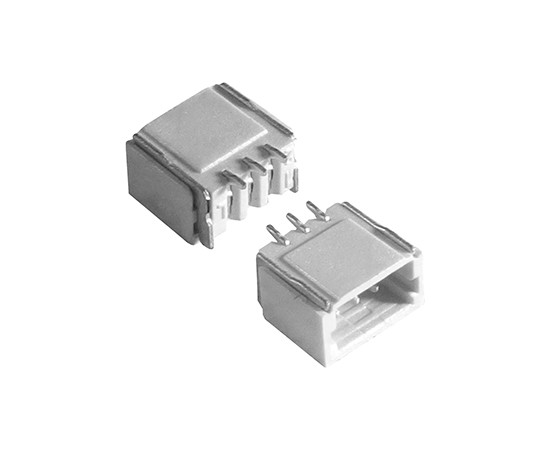

JVT1254WLP-03SNR-S JVT Cable connector

Symbol Micros: Z SH-SM03B-SRSS-TB

115715

Z SH-SM03B-SRSS-TB

Contractor Symbol:

Case : Rys.SH-SM03B-SRSS-TB

Datasheet

Technical drawing Add to favourites

socket; male, 3 pin; 0,5A; 50V; pitch: 1,0mm; horizontal; materiał: LCP; UL94V-0; temp. pracy: -20°C~+85°C; eqiv. SM03B-SRSS-TB, match to: SHR-03V-S-B

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	3
Current:	0,5A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1254WLP-03SNR-S RoHS Case style: Rys.SH-SM03B-SRSS-TB Datasheet

In stock:

91 pcs.

Quantity of pcs.	5+	25+	116+	464+	2320+
Net price (EUR)	0,2416	0,1123	0,0718	0,0591	0,0538

Add to comparison tool Add inquiry (RFQ)

Packaging:
116/464 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	3
Current:	0,5A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male
