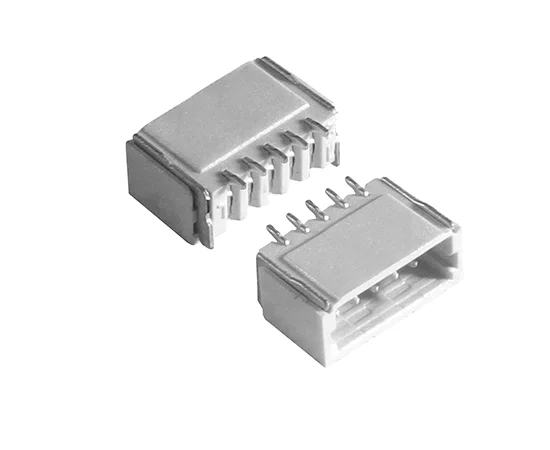

JVT1254WLP-05SNR-S JVT Cable connector

Symbol Micros: Z SH-SM05B-SRSS-TB

115717

Z SH-SM05B-SRSS-TB

Contractor Symbol:

Case : Rys.SH-SM05B-SRSS-TB

Datasheet

Technical drawing Add to favourites

socket; male, 5 pin; 0,5A; 50V; pitch: 1,0mm; horizontal; materiał: LCP; UL94V-0; temp. pracy: -20°C~+85°C; eqiv. SM05B-SRSS-TB, match to: SHR-05V-S-B

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	5
Current:	0,5A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1254WLP-05SNR-S RoHS Case style: Rys.SH-SM05B-SRSS-TB Datasheet

In stock:

970 pcs.

Quantity of pcs.	5+	20+	100+	400+	1500+
Net price (EUR)	0,2924	0,1605	0,1059	0,0893	0,0834

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	5
Current:	0,5A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male
