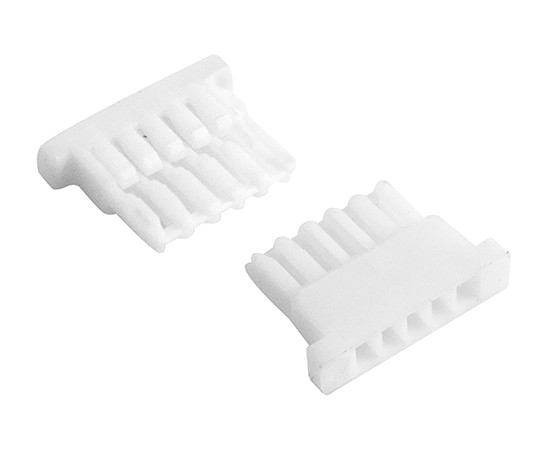

JVT1288HNO-05 JVT Cable connector

Symbol Micros: Z SHLP-05V-S-B

105942

Z SHLP-05V-S-B

Contractor Symbol:

Case : Rys.SHLP-05V-S-B

Datasheet

Technical drawing Add to favourites

socket; female; 5 pin; 3A; 250V; pitch: 1.0mm; materiał: Nylon 66; UL 94V-0; temp. pracy: -25°C~+85°C; eqiv. JST SHLP-05V-S-B

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	5
Current:	3A
Connector:	Socket
Operating voltage:	250V
Manufacturer:	JVT
Type of connector:	Female

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1288HNO-05 RoHS Case style: Rys.SHLP-05V-S-B Datasheet

In stock:

1000 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2013	0,0805	0,0467	0,0391	0,0366

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	5
Current:	3A
Connector:	Socket
Operating voltage:	250V
Manufacturer:	JVT
Type of connector:	Female
