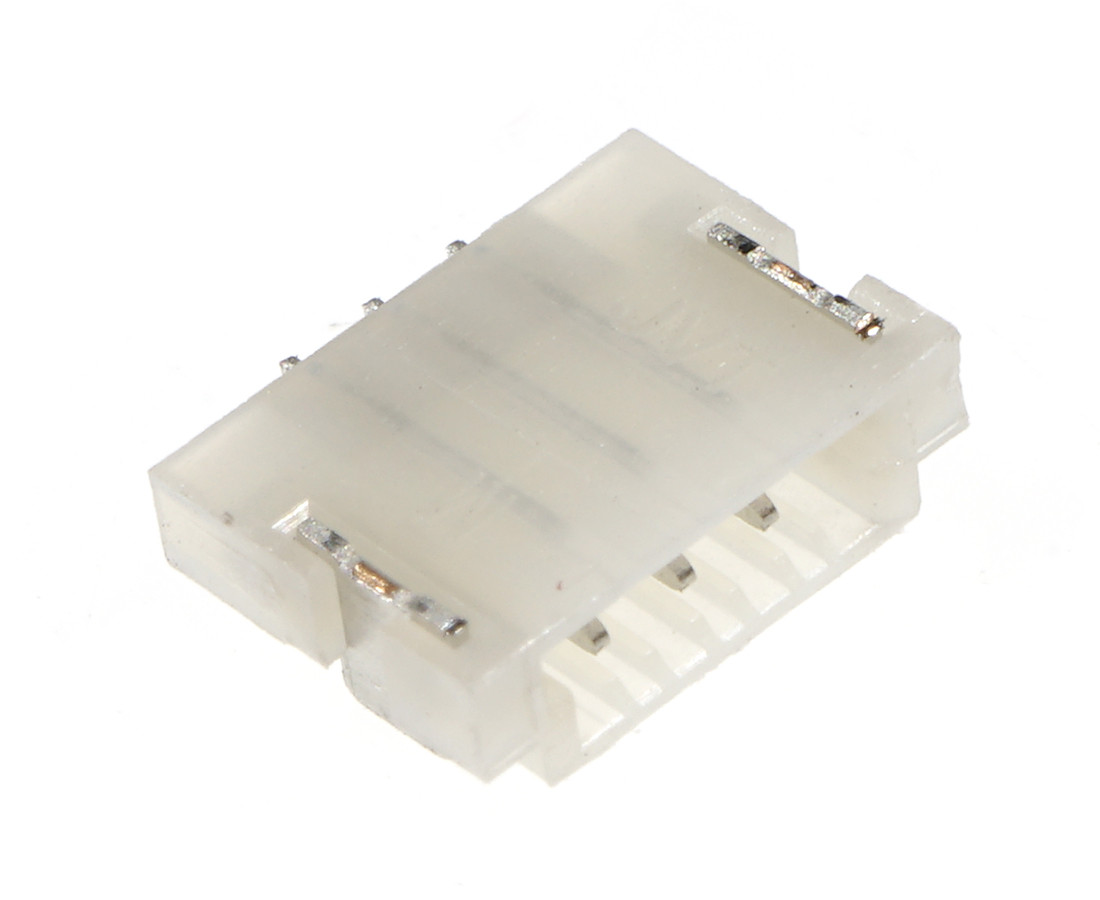

JVT1288W9T-03SWR-S JVT Cable connector

Symbol Micros: Z SHLP-SM03B-SHLS-TF

116223

Z SHLP-SM03B-SHLS-TF

Contractor Symbol:

Case : Rys.SHLP-SM03B-SHLS-TF

Datasheet

Technical drawing Add to favourites

socket; male, 3 pin; 1A; 50V; pitch: 1,0mm; material: PA9T; UL94V-0, temp range: -20°C~+85°C eqiv. SM03B-SHLS-TF, match to: SHLP-03V-S-B

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	3
Current:	1A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1288W9T-03SWR-S RoHS Case style: Rys.SHLP-SM03B-SHLS-TF Datasheet

In stock:

2498 pcs.

Quantity of pcs.	5+	20+	100+	500+	2500+
Net price (EUR)	0,2936	0,1625	0,1078	0,0900	0,0841

Add to comparison tool Add inquiry (RFQ)

Packaging:
2500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	3
Current:	1A
Connector:	Socket
Operating voltage:	50V
Manufacturer:	JVT
Type of connector:	Male
