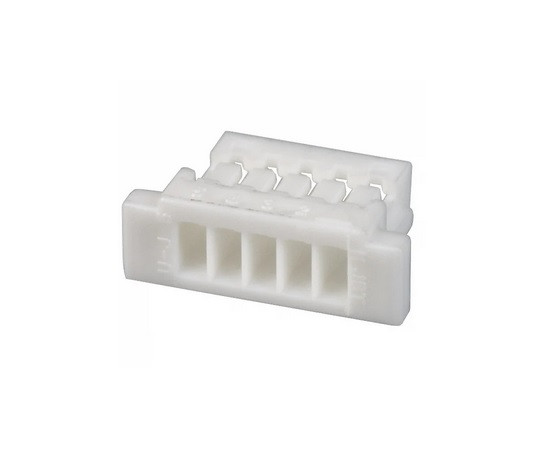

SHR-05V-S-B JST Cable connector

Symbol Micros: Z SHR-05V-S-B

348292

Z SHR-05V-S-B

Contractor Symbol:

Case : Rys.SHR-05V-S-B

Datasheet

Add to favourites

plug; female; 5 pin; 50V; 1A; pitch: 1,0mm; material: Nylon 66; UL 94V-0; operating temperature: -25°C~+85°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	5
Current:	1A
Connector:	Plug
Operating voltage:	50V
Manufacturer:	JST
Type of connector:	Female

All parameters

Manufacturer:: Japan Science and Technology Manufacturer part number: SHR-05V-S-B Case style: Rys.SHR-05V-S-B

External warehouse:

15844 pcs.

Quantity of pcs.	2000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0609

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	5
Current:	1A
Connector:	Plug
Operating voltage:	50V
Manufacturer:	JST
Type of connector:	Female
