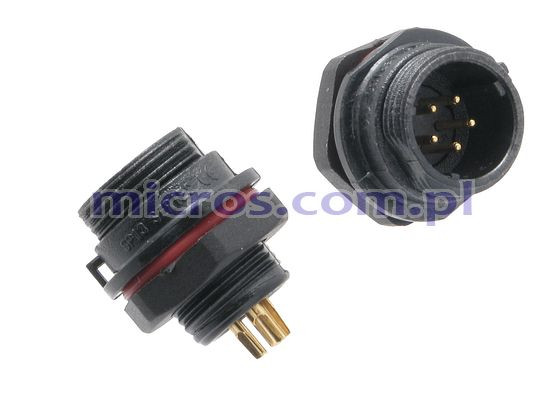

SP1312/P5-N WEIPU Industrial connector

Symbol Micros: Z SP1312/P5

75740

Z SP1312/P5

Contractor Symbol:

Case : Rys.Z SP1312/P5

Datasheet

Technical drawing Add to favourites

Male connector, circular, 5pin screwed, for panel mounting, IP68, 180V, 5A, mate with SP1310; external thread;

Parameters

Series:	SP13
Number of pins:	5
Current:	5A
Operating voltage:	180V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SP1312/P5-N RoHS Case style: Rys.Z SP1312/P5 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	3,0089	2,6020	2,3602	2,2070	2,1496

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/50 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-30

Quantity of pcs.: 300

• Parameters

Series:	SP13
Number of pins:	5
Current:	5A
Operating voltage:	180V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket
IP rating:	IP68
Type of connector:	Male
