SP2110/S4II WEIPU Industrial connector

Symbol Micros: Z SP2110/S4

78879

Z SP2110/S4

Contractor Symbol:

Case : Rys.Z SP2110/S4

Datasheet

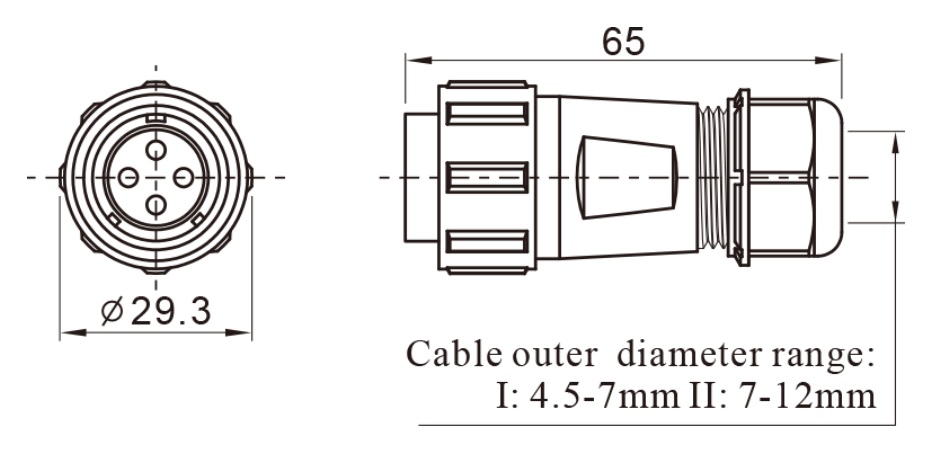

Technical drawing Add to favourites

Female connector, circular, 4pin; cable diameter: 7-12mm screwed, for cable, IP68, 500V, 30A; internal thread;

Parameters

Series:	SP21
Number of pins:	4
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Plug

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Series:	SP21
Number of pins:	4
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Plug
IP rating:	IP68
Type of connector:	Female
