SP2112/P4-1N WEIPU Industrial connector

Symbol Micros: Z SP2112/P4

78737

Z SP2112/P4

Contractor Symbol:

Case : Rys.Z SP2112/P4

Datasheet

Technical drawing Add to favourites

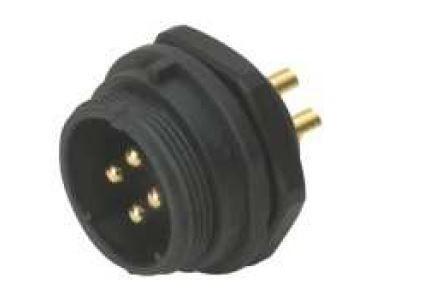

Male connector, circular, 4pin screwed, for panel mounting, IP68, 500V, 30A, mate with SP2110; external thread;

Parameters

Series:	SP21
Number of pins:	4
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SP2112/P4-1N RoHS Case style: Rys.Z SP2112/P4 Datasheet

In stock:

69 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,6408	3,2363	2,9945	2,8725	2,8007

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	SP21
Number of pins:	4
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket
IP rating:	IP68
Type of connector:	Male
