SP2112/S4-1N WEIPU Industrial connector

Symbol Micros: Z SP2112/S4

74661

Z SP2112/S4

Contractor Symbol:

Case : Rys.Z SP2112/S4

Datasheet

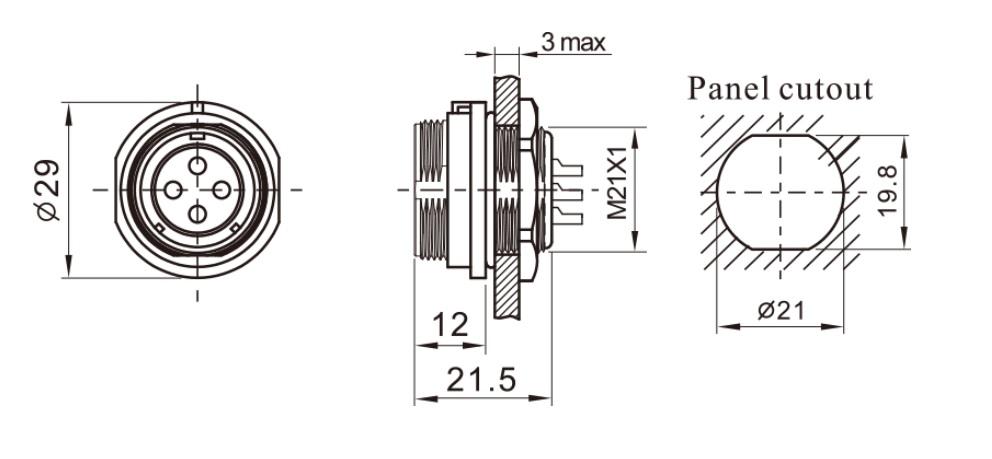

Technical drawing Add to favourites

Female connector, circular, 4pin; screwed, for panel mounting, IP68, 500V, 30A, mate with SP2110; external thread;

Parameters

Series:	SP21
Number of pins:	4
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Series:	SP21
Number of pins:	4
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket
IP rating:	IP68
Type of connector:	Female
