SP2113/P5-1N WEIPU Industrial connector

Symbol Micros: Z SP2113/P5

78745

Z SP2113/P5

Contractor Symbol:

Case : Rys.SP2113/P5

Datasheet

Technical drawing Add to favourites

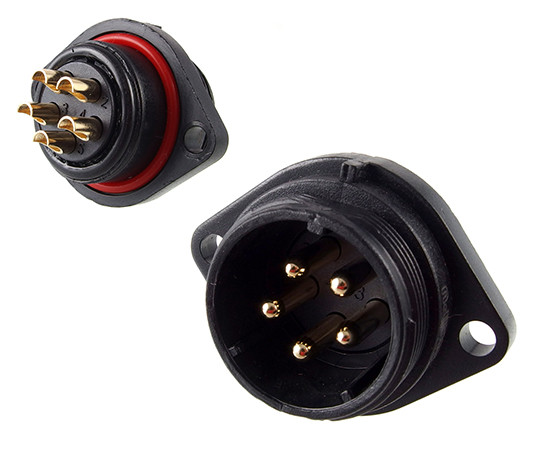

Male connector, circular, 5pin screwed, flange, IP68, 500V, 30A; external thread;

Parameters

Series:	SP21
Number of pins:	5
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SP2113/P5-1N RoHS Case style: Rys.SP2113/P5 Datasheet

In stock:

67 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,1149	3,6596	3,3854	3,2471	3,1661

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/100 Quantity (multiple: 1)

- +

• Parameters

Series:	SP21
Number of pins:	5
Current:	30A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket
IP rating:	IP68
Type of connector:	Male
