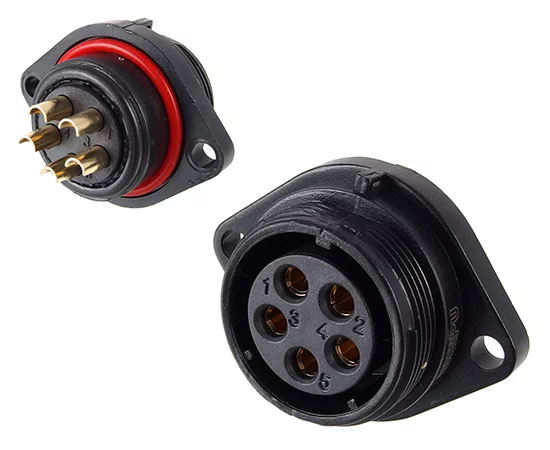

SP2113/S5-1N WEIPU Industrial connector

Symbol Micros: Z SP2113/S5

74710

Z SP2113/S5

Contractor Symbol:

Case : Rys.SP2113/S5

Datasheet

Technical drawing Add to favourites

Female connector, circular, 5pin; screwed, flange, IP68, 500V, 30A; external thread;

Parameters

Series:	SP21
Number of pins:	5
Current:	15A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: SP2113/S5-1N RoHS Case style: Rys.SP2113/S5 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,7772	3,3583	3,1070	2,9801	2,9059

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	SP21
Number of pins:	5
Current:	15A
Operating voltage:	500V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket
IP rating:	IP68
Type of connector:	Female
