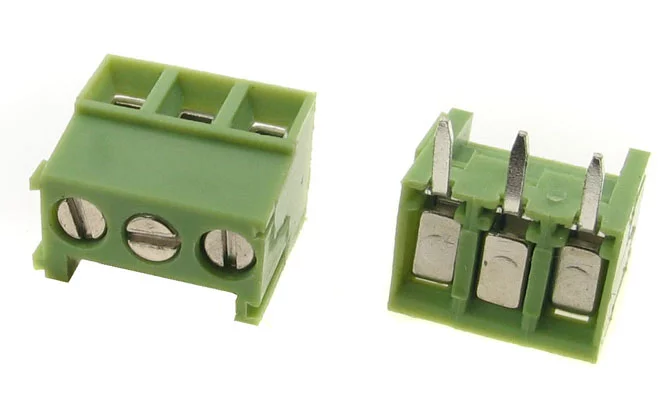

XY302R-3P 3.5mm (-) XINYA Terminal block

Symbol Micros: Z TL003r-3pgs

22270

Z TL003r-3pgs

Contractor Symbol:

Case : Rys.TL003r-3pgs

Datasheet

Technical drawing Add to favourites

3 poles, pitch 3.5mm, height 7.35mm, green colour, 150V, 10A, 26-16AWG, angled, lift, slot screw, steel, zinc plated wire cage and solder pin: brass, tin plated, eqiv: TBX3503R

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	7,35mm
Terminal pitch:	3,5mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Green
Screw type:	Slotted head screw

All parameters

Manufacturer:: XINYA Manufacturer part number: XY302R-3P 3.5 RoHS Case style: Rys.TL003r-3pgs Datasheet

In stock:

1500 pcs.

Quantity of pcs.	3+	10+	50+	200+	800+
Net price (EUR)	0,3451	0,2252	0,1610	0,1406	0,1325

Add to comparison tool Add inquiry (RFQ)

Packaging:
800 Quantity (multiple: 1)

- +

Manufacturer:: XINYA Manufacturer part number: XY302R-3P 3.5 RoHS Case style: Rys.TL003r-3pgs Datasheet

In stock:

200 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,3451	0,2257	0,1617	0,1415	0,1325

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Height:	7,35mm
Terminal pitch:	3,5mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Green
Screw type:	Slotted head screw
