XY2500R-M(7.5)-03P XINYA Terminal block

Symbol Micros: Z TLPH400r-03p

29402

Z TLPH400r-03p

Contractor Symbol:

Case : Rys.TLPH400r-03p

Datasheet

Technical drawing Add to favourites

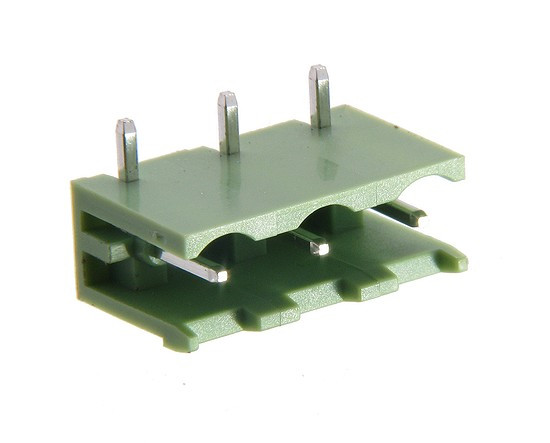

03 poles; pitch: 7.5mm; height: 8.1mm; green colour, open, 300V; 15A; straigth, mates with TLPS 7.5mm; solder pin: brass, tin plated, eqiv. GMSTB 2,5/ 3-G; 1766026; 2EDGR-7.5-03P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	8,1mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	8,1mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm
