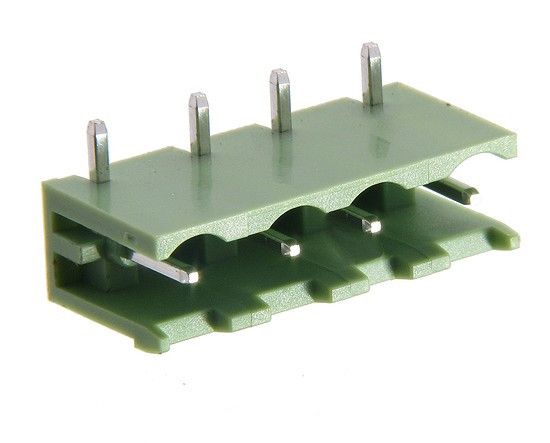

XY2500R-M(7.5)-04P XINYA Terminal block

Symbol Micros: Z TLPH400r-04p

29403

Z TLPH400r-04p

Contractor Symbol:

Case : Rys.TLPH400r-04p

Datasheet

Technical drawing Add to favourites

04 poles; pitch: 7.5mm; height: 8.1mm; green colour, open, 300V; 15A; straigth, mates with TLPS 7.5mm; solder pin: brass, tin plated, eqiv. GMSTB 2,5/ 4-G; 1766039; 2EDGR-7.5-04P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	8,1mm
Number of pins:	4
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm

All parameters

Manufacturer:: XINYA Manufacturer part number: XY2500R-M 4P 7.5 RoHS Case style: Rys.TLPH400r-04p

In stock:

926 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2061	0,1136	0,0752	0,0626	0,0589

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Height:	8,1mm
Number of pins:	4
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm
