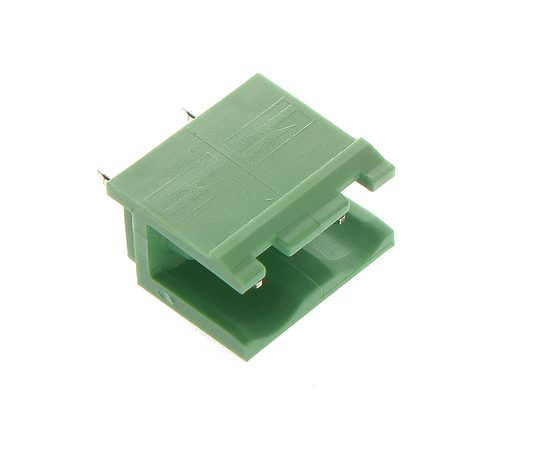

XY2500V-M(7.5)-02P XINYA Terminal block

Symbol Micros: Z TLPH400v-02p

14051

Z TLPH400v-02p

Contractor Symbol:

Case : Rys.TLPH400v-02p

Datasheet

Technical drawing Add to favourites

02 poles; pitch: 7.5mm; height: 12.2mm; green colour, open, 300V; 15A; straigth, mates with TLPS 7.5mm; solder pin: brass, tin plated, eqiv. GMSTBV 2,5/ 2-G; 1766453; 2EDGV-7.5-02P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	12,2mm
Number of pins:	2
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	12,2mm
Number of pins:	2
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm
